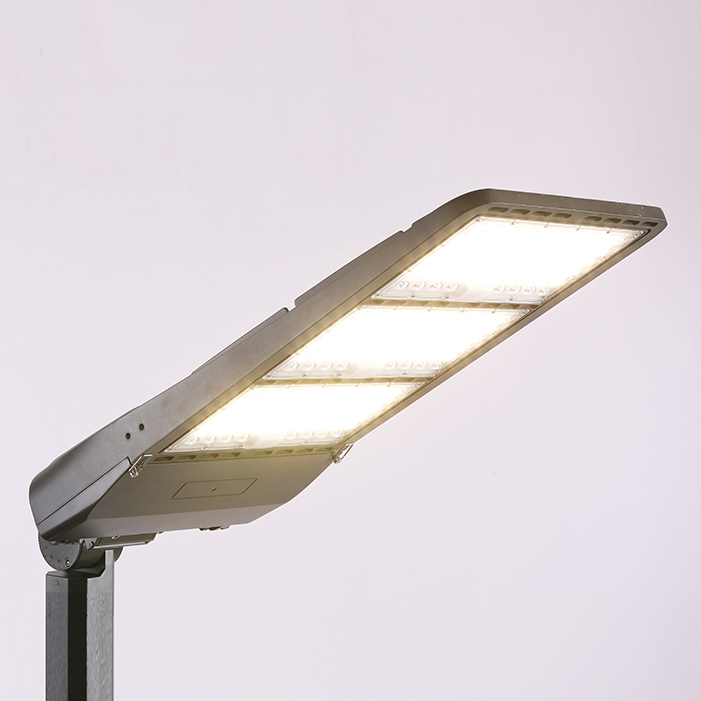

GRD400 POLE MOUNTED LED LUMINAIRE
GRD400 is an slimline, super-high powered industrial luminaire designed for streetlighting, carparks, and public spaces. Delivering dependable LED lighting performance, it offers efficient illumination and cost-effective operation. As an Australian lighting manufacturer, we adhere to Australian standards for commercial lighting, ensuring reliability and durability. Rely on our Australian lighting products for consistent, high-quality outdoor illumination that enhances safety and visibility.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-277VAC |
| Power Consumption: | 240W / 400W / 500W |
| LED Driver Classification: | Constant Current |
| Light Source Classification: | Philips SMD3030 |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK08 |
| IP Protection Rating: | IP66 |
| Nominal Body Depth: | 105mm Slimline |
| Nominal Body Length: | 768x340x105mm |
| Construction Material: | Aluminium |
| Mounting Configuration: | Pole Mounted / Bracket Mounted |
| Recommended Ambient Temp: | -20˚C – 60˚C |
CONFIGURATION OPTIONS
- Available in custom colours by special request
- Power Options from 240W-500W
- Optional sensor and PE photocell by request
- Multiple trunnion and pole mounting accessories by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 135-145lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 5700K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | Refer to photometric diagrams |
CONTROL OPTIONS
GRD80 can be fitted with automatic motion sensor and/or NEMA accessories including PE cell or built-in time clock automaton. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | GRD400 |
| Specify LED CCT: | 3000K / 4000K / 5000K / 5700K |
| Specify Wattage Size: | 240W / 400W / 500W |
| Colour Finish: | Dark Grey (GY) / White (WH) / Custom |
| Optional Accessory: | Wall Mounted Spigot Bracket |
| Control Option: | Non-Dimmable / 1-10V / PE Cell / Sensor |
All product details are subject to change without notice. Final specifications may vary.
