XMW Wall-mounted medical luminaire | COI compliant

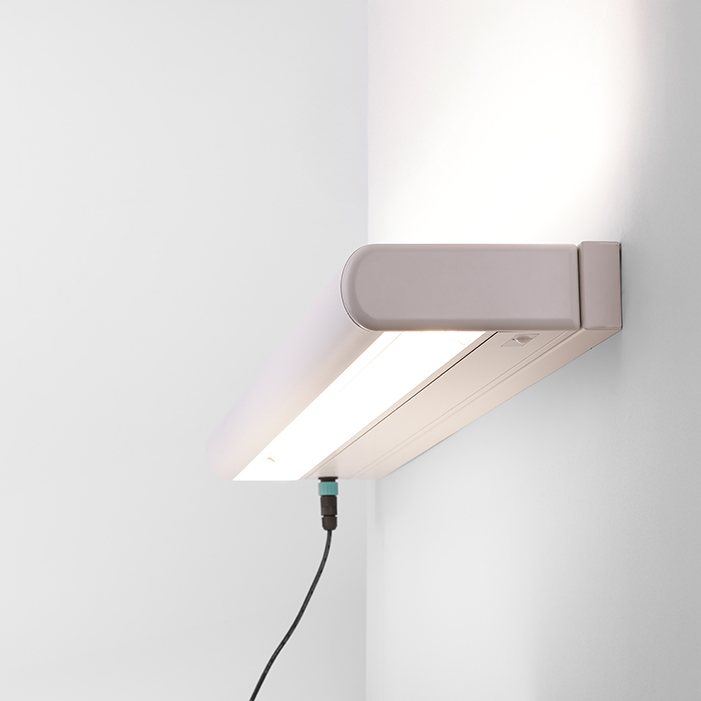

Industralight XMW is a multifunctional, wall-mounted luminaire designed for hospital and aged care settings. Offering adjustable brightness and color temperature, it ensures comfort and functionality for bedside use. COI compliant, the XMW meets stringent health regulations, enhancing the quality of care in sensitive environments. Elevate patient experience with Industralight XMW.
Specifications
| Model: | XMW |
| Input Voltage: | 110-240VAC |
| Power Consumption: | 10-60W Variable |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | SSC Semiconductor CRI>90 |
| Dimensions: | 1017 x 156 x 58mm |
| IP Protection Rating: | IP20 |
| Overall Panel Thickness: | 12mm |
| Construction Material: | Aluminium, powder-coated |
| Surface Treatment: | Anti-Microbial Coating |
| Optical Configuration: | UGR<19 Louvre + PMMA Opal |
| Mounting: | Wall Surface Mounted |
| Recommended Ambient Temp: | -10 ~ +50°C |
Configurations
- XMW Features Multiple Dimmable Lighting Modes
- Colour can be refinished by special request
- DALI-2 Control by Special Request
Photometric Information
| Typical Lumen Efficacy: | 100lm/W |
| CCT Colour Temperature: | 4000K |
| Variable CCT Tunable Mode: | 2700K-4000K-6500K Tunable |
| Colour Rendering (Ra): | 90Ra |
| Beam Angle / Distribution: | 110° |
Typical Applications
A versatile option for medical and dental applications, including:
- Dental and hospital pre-and-post surgery recovery suites
- GP and medical specialist clinics
- Aged-care rooms and medical suites at retirement complexes

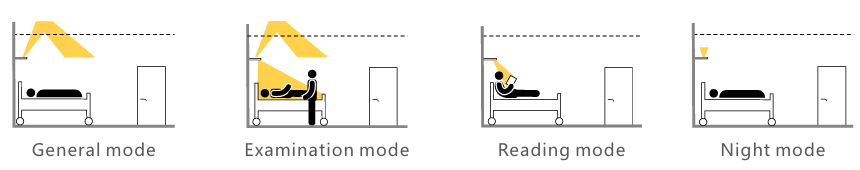

| Mode | Power | LED CRI | Optical Distribution |
| General mode lighting | 60W | >90 | 70° with Asymmetric 15° |
| Reading mode lighting | 20W | >90 | 60° with Asymmetric 15° |
| Night mode lighting | 10W | >90 | 110° Indirect/Ambient |
| Examination mode | 90W | >90 | 70° Direct-Indirect Full |
Compliance and Certification
- IESNA2002
- AS1680.2.5 – COI ≤3.3
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 55,000hrs @ L80
Ordering Information
| Model Number: | XMW (CYANOSIS COMPLIANCE) |
| Specify LED CCT: | 4000K (with Tunable Ambient CCT) |
| Specify Accessory: | Remote Control or Wall Plate Control |
| Specify Wattage: | 10-90W Controllable |
| Surface Colour: | White / Custom by Special request |
All product specifications are subject to change without notice. Industralight accepts no liabilities as a result of errors, updates or omissions. Please re-confirm all product details prior to ordering.
