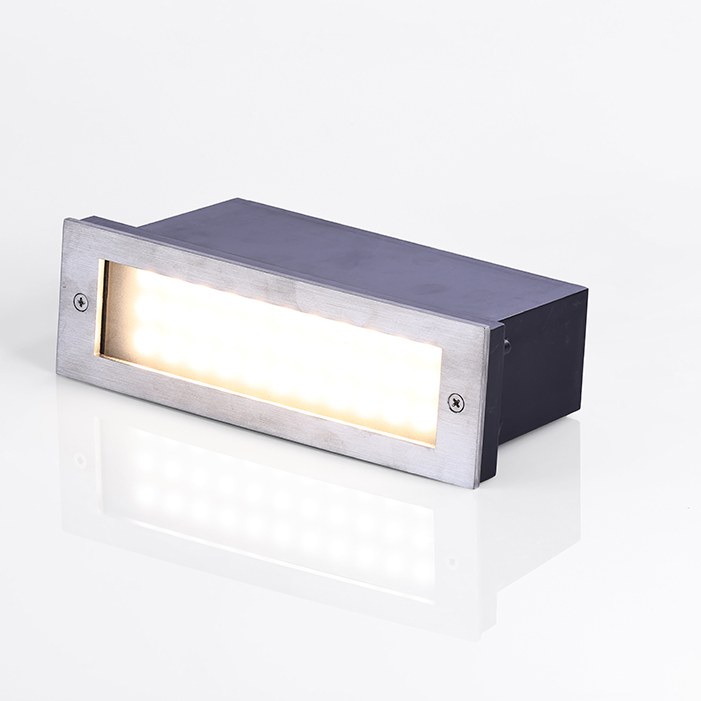

WLR76 Recessed exterior LED brick light
WLR76 presents a premium stainless-steel recessed wall luminaire for exterior use and harsh coastal locations. This fixture features integrated Osram LEDs with dedicated driver, delivering reliable architectural lighting performance and energy efficiency. Perfect for guiding light along pathways, corridors, stairwells, plazas, campuses, waterfronts, and other functional zones. Brick-style faceplate with open face design. Optional grille and protective grille options by special request.
Specifications
| Model: | WLR76 |
| Input Voltage: | 100-240VAC |
| Max Power Consumption: | 6W |
| Trim Dimensions: | 240x76mm (other sizes by request) |
| Overall Fixture Depth: | 95mm |
| Overall Depth (Mounting Box) | 104mm |
| LED Classification: | Osram Duris-E |
| Colour/Finish: | 316 Stainless Steel Trim |
| Typical Light Source Efficacy: | 100lm/W |
| Beam Angle Options: | 100° |
| Included Accessories: | Plastic Mounting Box |
| Recommended Ambient Temp: | -10 ~ +40°C |
| IP Protection Rating: | IP65 |
Photometric Information
- WLR76-6000K CCT: 6000K CRI: >80
- WLR76-4000K CCT: 4000K CRI: >80
- WLR76-3000K CCT: 3000K CRI: >80
Detailed photometric report and IES files available by request
Typical Applications
Applications include commercial and residential lighting, public spaces, pathways and passageways, stairwell lighting, retaining walls, entrances and common areas, hotels, hospitality projects etc.
3D Modelling & Lighting Design
Industralight can provide detailed 3D modelling and lighting design services for your project, including wiring schematics and lighting control system design. Contact us for more information.
Control & Dimming Compatibility
WLR76 is typically a non-dimmable configuration. Optional dimmable configurations include Phase Dim, DALI, 1-10V, DMX512. Some options may require remote mounted control gear. Please contact us for options and availability.
Customisation Options
- Standard powdercoat finishes including Black, White, Silver
- WLR76 features open fascia from pane.
- Grille and other facias by special request
- Fixture colour can be refinished by special request
- RGB and RGBW, CCT Tunable LED Options by request
- Remote-mounted DALI or DMX512 control options available
- Wireless Casambi Control Option also available
*Custom options may be subject to minimum order quantities
Ordering Information
| WLR76-6000K | Recessed Brick Light Silver inc Mounting Box 6000K |
| WLR76-4000K | Recessed Brick Light Silver inc Mounting Box 4000K |
| WLR76-3000K | Recessed Brick Light Silver inc Mounting Box 3000K |
| WLR7BK6-6000K | Recessed Brick Light Black inc Mounting Box 6000K |
| WLR76BK-6000K | Recessed Brick Light Black inc Mounting Box 4000K |
| WLR76BK-6000K | Recessed Brick Light Black inc Mounting Box 3000K |
All product specifications are subject to change without notice. Industralight accepts no liabilities as a result of errors, updates or omissions. Please re-confirm all product details prior to ordering.
