Industralight VWP200 Adjustable Wall Pack Fixture

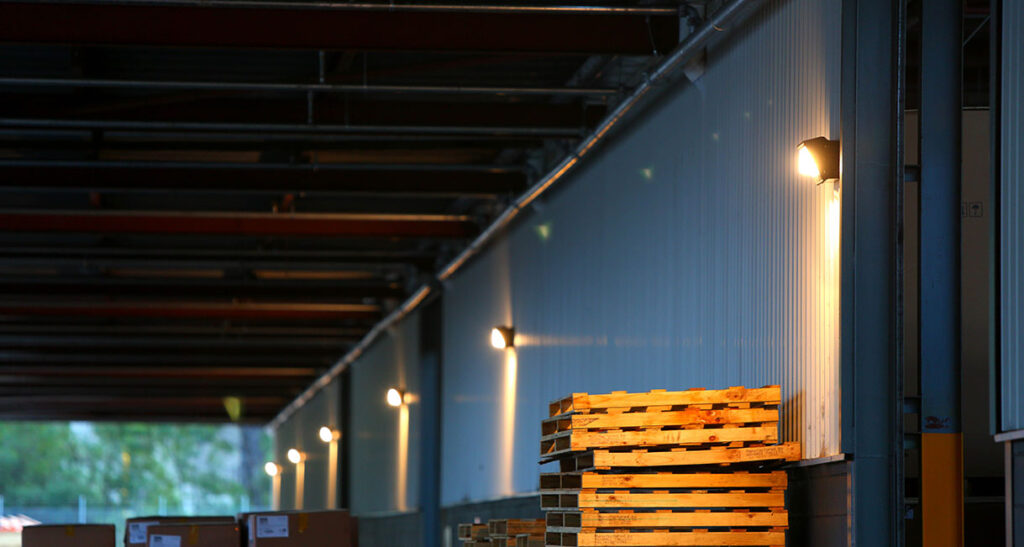

Industralight VWP200 is contemporary wall mounted luminaire which can be used in up or down configuration.  The fitting features a toughened de-sign making it suitable for demanding commercial and industrial projects. Typical applications include building permitters, security lighting, retail and shopping complexes, courtyards, area lighting, task lighting, mining, industrial and commercial projects.

Electrical Parameters

Input Voltage120-277VAC
Max Power Consumption14W / 20W / 28W / 52W
LED Driver ClassificationIntegral Constant Current LED Driver
Light Source ClassificationCitizen COB

Mechanical Specifications

Minimum IK RatingIK10
IP Protection RatingIP65
Dimensions158x141x107mm
Construction MaterialPowdercoated Aluminium
Standard Colour/FinishBlack
Net Weight3.0KG
Recommended Operating Temp-10°C – +50°C

Configuration Options

  • 135×85° Asymmetrical optical configuration by request
  • Non standard fitting colours available by special request
  • Higher power 52W configuration available by special request

Photometric Information

Typical Light Source Efficacy95lm/W
CCT Colour Temperatures3000K / 4000K / 6500K
Colour Rendering Index [CRI]>80
Beam Angle / Viewing Angle100°

Detailed photometric report and IES files available by request

Lighting Design & Simulations

Industralight can provide independent LUX calculations and 3D lighting simulations for your project incorporating this product. Please contact our office for more information on design services.

Warranty Information

Industralight fixtures are manufactured to a high quality standard using finest quality LED components and materials. This product is covered by a full product replacement warranty.

Please see our warranty policy for full details.

Series Model NumberVWP200
Beam Angle100° / 135×38°
Specify Wattage14W / 20W / 28W
Specify Fitting ColourBlack / Silver
Specify Colour Temp3000K / 4000K / 6500K
Warrranty InformationExtended Warranty Available

All product specifications are subject to change without notice. Industralight assumes no responsibility of errors or omissions. Please confirm product details prior to ordering.
