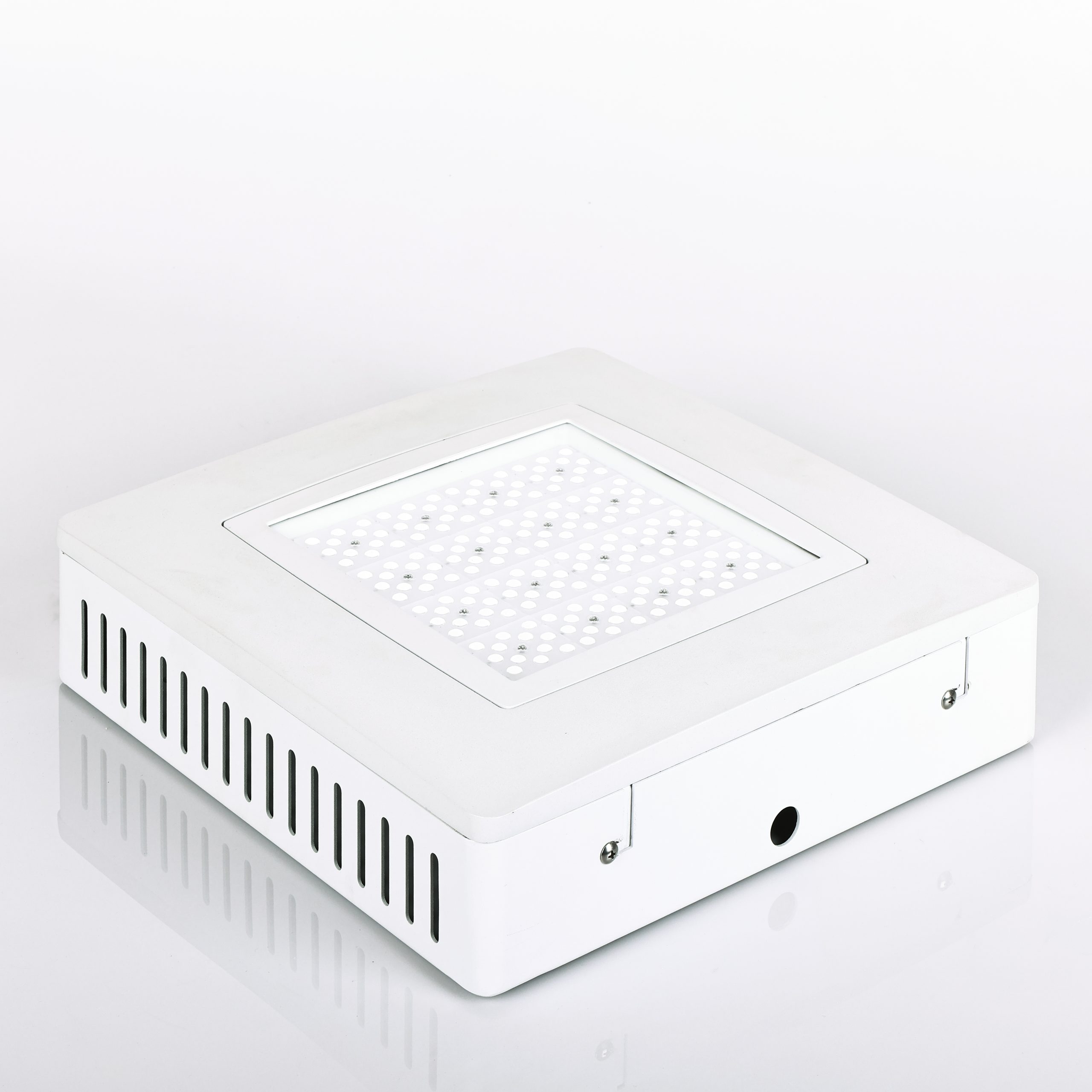

CP405S COMMERCIAL LED CANOPY LUMINAIRE
CP405S is an industrial grade ceiling luminaire that is suitable for general area lighting in commercial and industrial applications. The architecturally styled fittings are constructed from powdercoated steel body with polycarbonate lens. CP405S features a powerful and efficient modular LED light source and integral LED driver. Multiple optical options available.
ELECTRICAL PARAMETERS
| Input Voltage: | 90-277VAC |
| Power Consumption: | 80W / 100W / 150W / 200W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | CREE XBD |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK09 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 400x400x101.7mm |
| Construction Material: | Aluminium Alloy with PC & Glass |
| Standard Colour/Finish: | Powdercoated White |
| Net Weight: | 5.5KG |
| Recommended Ambient Temp: | -15˚C – 50˚C |
CONFIGURATION OPTIONS
- Recessed version also available
- Non standard colours available by special request
- DALI dimmable LED driver available by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 145lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 90˚ x 60˚ / 120˚ |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | CP405S |
| Specify LED CCT: | 3000K / 4000K / 6500K |
| Specify Beam Angle: | 30˚ / 60˚ / 90˚ / 40˚x110˚ |
| Specify Wattage: | 80W / 100W / 150W / 200W |
| Input Voltage Option: | 90-265VAC / 24VDC |
| Dimming Option: | Non Dimmable / DALI / 1-10V / Wireless |
All product details are subject to change without notice. Final specifications may vary.
