SL6874 STAIRNOSE LED LIGHTING SYSTEM
SL6874 stairnose lighting system consists of a robust aluminium profile with toughened anti-slip tread insert and integrated light source channel. The profile can be fitted with Superlight SMD LED strip modules, including single colours & RGBW colour-mixing options. The fully concealed light source washes light indirectly across the step riser and tread — ideal for venues, theatres, and projects where glare control matters.
SPECIFICATIONS
| Standard Profile Finish: | Anodised Grey/Aluminium |
| Dimensions: | 68×24.6mm |
| Stair Tread Options: | Black Safety PVC Tread Insert |
| LED Configuration: | Customised SMD LED / RGB / RGBW |
| Control Gear: | Remote Mounted |
| Voltage Options: | 12VDC or 24VDC |
| Standard Length: | Superlight can supply any Length |
| Control Options: | PWM / DMX512 /DALI / Casambi Wireless |
| IP Rating: | IP64 Rated Diffuser and Profile |
PHOTOMETRIC INFORMATION
Photometric performance is dependant on LED configuration
TYPICAL APPLICATIONS

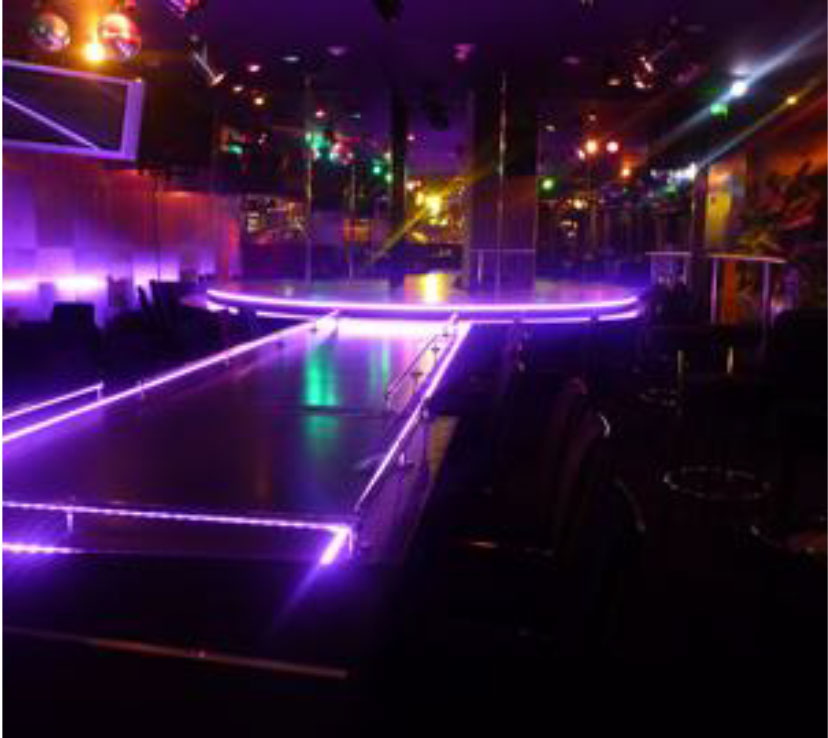

Commercial Stair-Tread Lighting, Clubs & Venues, Nightclubs, Restaurants & Cafes, Public Spaces, Decorative Lighting.
CONTROL & DIMMING COMPATIBILITY
This product is available in dimmable configurations including Casambi wireless, Automation, Phase Dim, DALI, 1-10V, DMX512.Please contact us for options and availability
ORDERING INFORMATION
SL6874-00 Custom LED Stairnose Lighting Profile
SL6874-20 Opal Acrylic Diffuser Lens
SL6874-40 Black PVC Tread Insert
CUSTOMISATION OPTIONS
Custom lengths can be cut to each project need
Various LED configuration options are available
Mounting profile can be powdercoated by request
Choose RGB, RGBW, or dimmable single-colour control to suit your application
Available in interior and exterior IP-rated versions
The SL6874 LED stairnose lighting system can be supplied in several different configurations and customised for each individual project. Contact our office for assistance with ordering or specifying this product.
All product specifications are subject to change without notice. Industralight accepts no liabilities as a result of errors, updates or omissions. Please re-confirm all product details prior to ordering.
