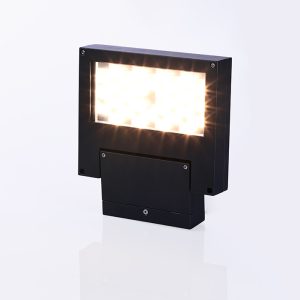

Industralight IXT is the latest generation in Industrial lighting. Constructed from corrosion resistant aluminium materials, with advanced modular LED light source. IXT delivers superior lumen performance and is an ideal lighting solution for canopy lighting , carparks, harsh environments, building facades, security lighting, general purpose floodlighting, industrial sites, commercial projects.
Electrical Parameters
Input Voltage
85-300VAC
Max Power Consumption
40W
IEC Earth Protection
Class 1
Light Source Classification
Osram 3030T
Mechanical Specifications
Minimum IK Rating
IK10
IP Protection Rating
IP65
Dimensions
291x203x62mm
Construction Material
Aluminium
Standard Colour/Finish
Anodised / Corrosion Resistant
Recommended Operating Temp
-30˚C – 55˚C
Configuration Options
Several illumination optic / beam angle configurations available
24VDC version available by special request
DALI dimmable LED driver by special request
Photometric Information
Typical Lumen Efficacy
130lm/W
CCT Colour Temperatures
3000K / 4000K / 6000K
Colour Rendering Index [CRI]
>80
Beam Angle/Viewing Angle
30˚/60˚/90˚/120˚/120˚x90˚/150˚x80˚
Detailed photometric report and IES files available by request
