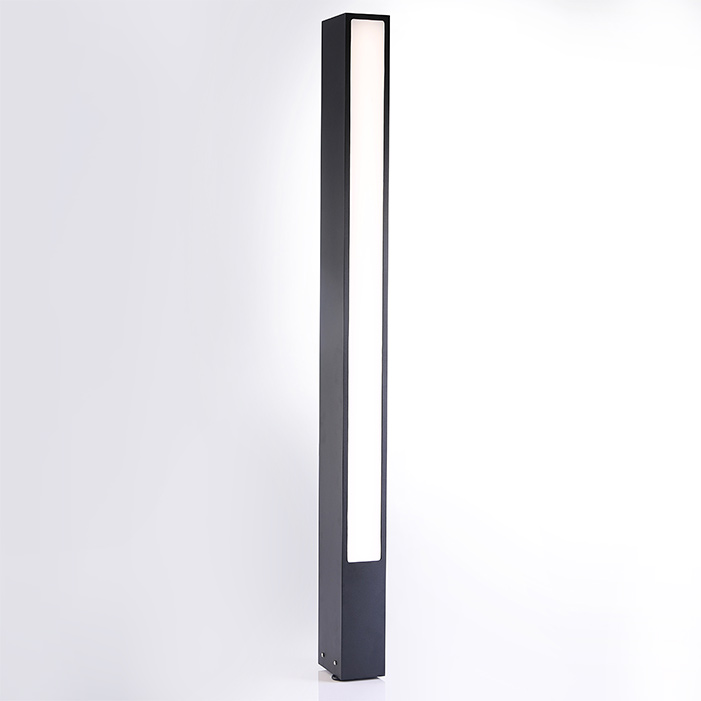

INDUSTRALIGHT SB SERIES LANDSCAPE LED BOLLARD

SB is a high quality architectural bollard luminaire designed for parks & recreational areas, streetlighting, public landscaping, car park lighting. Schools, commercial spaces and many more. SB luminaires feature a high-quality integral LED light source & built-in electronic LED control gear. Toughened PMMA diffuser. Available in single-sided or double-sided option and heights up top 1400mm.

ELECTRICAL PARAMETERS

Input Voltage: 100-240VAC
Power Consumption: 12W / 24W / 36W / 48W
LED Driver Classification: Integral, Constant Current
Light Source Classification: Industralight 3528 SMD LED

MECHANICAL SPECIFICATIONS

Height: 3.0mtr
IP Protection Rating: IP65
Body Profile Dimensions: 100x150mm
Height Option: Various up to 1400mm
Construction Material: Extruded Alloy + Steel
Diffuser Material: Toughened PMMA Opal
Recommended Ambient Temp: -20˚C – 45˚C

CONFIGURATION OPTIONS

● Available in single-sided or double-sided options
● Can be finished in black / white / silver or custom
● Optional 24VDC version available by special request
● Non-standard colour finishes available by special request
● Optional inground concrete J-Bolt anchor kit available

PHOTOMETRIC INFORMATION

Typical Lumen Efficacy: 110lm/W
CCT Colour Temperature: 3000K/4000K/5000K
Colour Rendering (Ra): >85Ra
Beam Angle/Viewing Angle: 1×120˚ / 2×120˚

CONFIGURATION & CONTROL OPTIONS

Industralight SB can be configured for single sided or double sided illumination. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.

COMPLIANCE & CERTIFICATION

● IESNA2002
● AS/NZS60598, LM79, LM80
● Lifespan: Exceeds 50,000hrs @ L70

ORDERING INFORMATION

Model Number: SB196 / SB296
Height Option: 800mm / 1100mm / 1400mm
Specify LED CCT: 3000K/4000K/5000K
Specify Wattage: 12W / 24W / 36W / 48W
Specify Finish/Colour: Black / White / Silver / Custom:______
Input Voltage Option: 100-240VAC or 24VDC
Optional J-Bolt Kit: SB-AKIT

All product details are subject to change without notice. Final specifications may vary.
