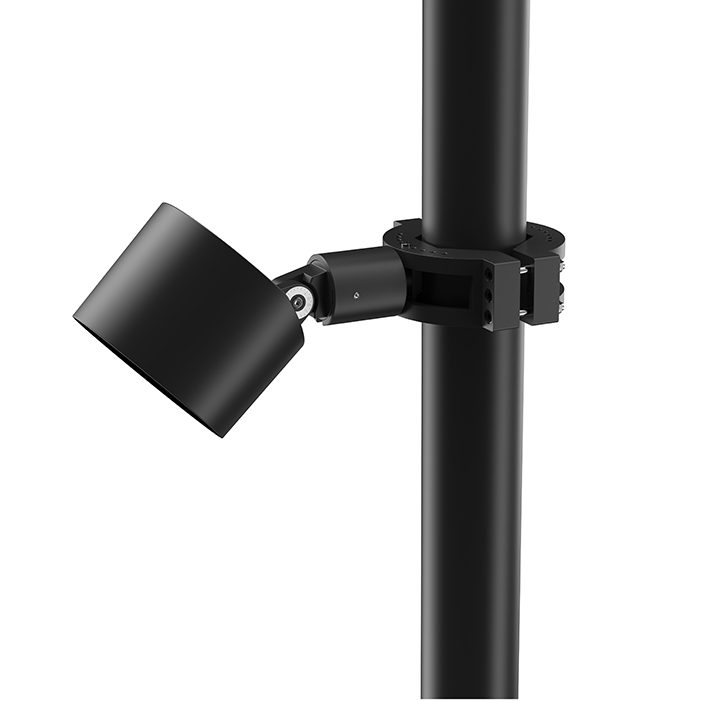

Polecraft® SR(102) Straight round lighting pole
Polecraft® lighting poles are expertly designed and engineered to perform in demanding Australian conditions. Available in a comprehensive range of heights, configurations, and accessory options, they suit virtually any luminaire or lighting application. Each Polecraft pole is hot-dip galvanised (HDG) before being professionally powder-coated, delivering superior corrosion protection, long-term durability, and a premium architectural finish for urban, commercial, and infrastructure projects.

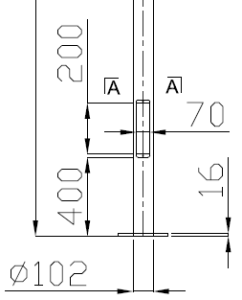

SPECIFICATIONS
| Pole Profile: | Straight Round |
| Typical Pole Diameter: | 102mm |

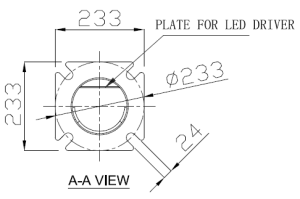

| Base Plate Dimensions: | 233x233x16mm |
| Bolt Pattern Designation: | D233 |
| Top Configuration: | 60mm OD Spigot Top |
| Spigot Height: | 130mm |
| Construction Material: | Q235 Aluminium |
| Wall Thickness: | 3mm |
| Surface Treatment: | Hot Dipped Galvanised (HDG) |
| Finish Coating: | Powdercoated (Optional) |
| Access Inspection Window: | Included |
POLE HEIGHTS
- Polecraft® SR is available in heights up to 8.0 m with D233 base plate
- 9.0 / 9.5mtr / 10mtr heights available by request with D350 base plate
- Custom lighting columns up 20mtrs available for custom order
- Contact Industralight for drawings available
FOUNDATION CAGE SELECTION TABLE
| PART NO | OVERALL DEPTH | BOLT CODE | MAX POLE HEIGHT* |
| FCM20X500 | 500MM | D233 | 4.0MTR |
| FCM20X700 | 700MM | D233 | 4.5MTR |
| FCM20X1200 | 1200MM | D233 | 6.0MTR |
| FCM20X1500 | 1500MM | D233 | 8.0MTR |
The above table lists recommendations for reference only. Variables such as local engineering considerations, pole loads, and soil conditions should be taken into consideration before
specifying. Please consult a suitably qualified engineer for more details on the requirements in each case. Industralight does not accept responsibility for external factors relating tothe
specification of the correct foundation cage or pole arrangements for a particular site. All product details are subject to change without notice. Final specifications may vary.
POLE INFORMATION
| MODEL NO | HEIGHT |
| POLES-SR3 | 3.0MTR |
| POLES-SR4 | 4.0MTR |
| POLES-SR5 | 5.0MTR |
| POLES-SR6 | 6.0MTR |
| POLES-SR7 | 7.0MTR |
| POLES-SR8 | 8.0MTR |
All product details are subject to change without notice. Final specifications may vary.
