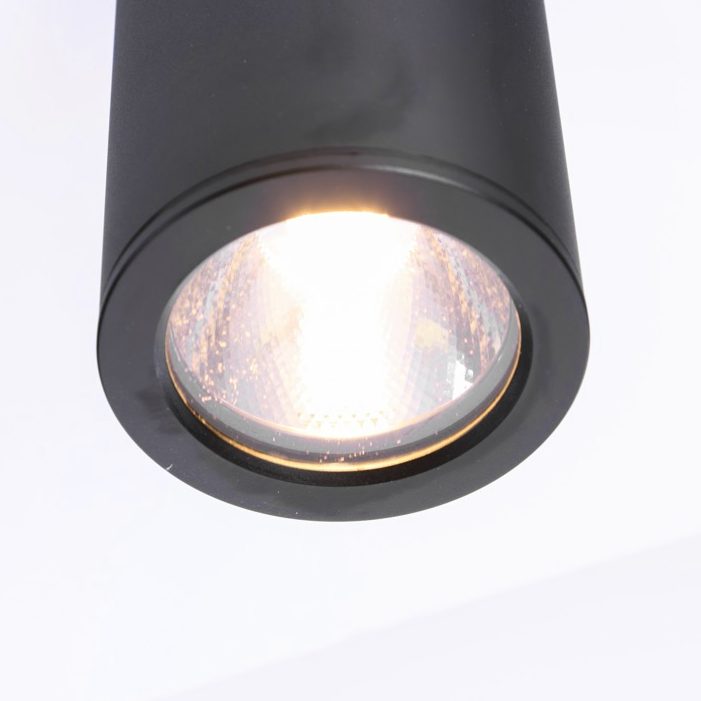

CDL223 SURFACE MOUNT LED DOWNLIGHT
CDL223 commercial-grade surface-mounted LED downlight is designed for professional use in both indoor and outdoor settings. With IP65 protection, it ensures durability and reliability. Ideal for projects requiring high-quality LED lighting, it delivers superior performance for architectural, landscape, and general lighting applications.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 20W / 30W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | COB LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 125(dia) x 223mm(h) |
| Construction Material: | EXtruded Alloy / Powdercoated |
| Standard Colour/Finish: | Silver / White / Black |
| Recommended Ambient Temp: | -20˚C – 45˚C |
CONFIGURATION OPTIONS
- 24VDC version available by special request
- Non-standard colours available by special request
- Dimensions can be customised by special request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 115lm/W |
| CCT Colour Temperature: | 3000K/4000K/6500K |
| Colour Rendering Options (Ra): | >85Ra / >95Ra |
| Beam Angle/Viewing Angle: | 10˚ / 24˚ / 40˚ |
CONTROL OPTIONS
Customise this product to suit your project requirements. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | CDL223 |
| Power Options: | 20W / 30W |
| Specify LED CCT: | 3000K/4000K/5500K/6500K |
| Specify Beam Angle: | 10˚ / 24˚ / 40˚ |
| Specify Finish/Colour: | Black / Silver / White / Custom |
| Input Voltage Option: | 100-24VAC or 24VDC |
| Dimming Option: | Non Dimmable / DALI / 1-10V / Casambi |
All product details are subject to change without notice. Final specifications may vary.
