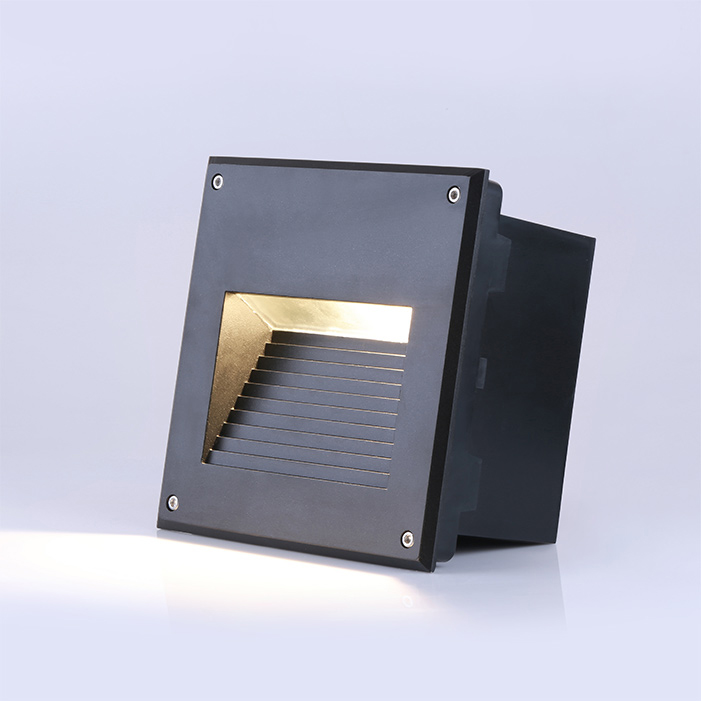

ALT554R Recessed IP65 LED wall light
ALT554R is a commercial wall light luminaire ideally suited to commercial projects, common areas, corridors and stairway lighting. The fitting features an integral constant current LED driver and robust construction with corrosion-resistant powder-coated surface treatment. ALT550 is also available in a surface-mount version (ALT550S).
Electrical Parameters
| Input Voltage: | 120-240VAC |
| Max Power Consumption: | 18W |
| LED Driver Classification: | Integral LG-D LED Driver |
| Light Source Classification: | Citizen SMD LED |
Mechanical Specifications
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 250x250mm |
| Construction Material: | Cast Aluminium, Powdercoated |
| Standard Colour/Finish: | Dark Grey |
| Recommended Operating Temp: | -10 ~ +50°C |
Configuration Options
- Surface-mounted version also available (ALT550S)
- Non-standard colours available by special request
- DALI dimmable LED driver available by request
Photometric Information
| Typical Light Source Efficacy | 85lm/W |
| CCT Colour Temperatures | 3000K / 4000K / 6000K |
| Colour Rendering Index [CRI] | >80Ra |
| Beam Angle/Viewing Angle | 60° / Indirect Visor |
Detailed photometric report and IES files available by request
Compliance and Certification
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
Ordering Information
| Model Number: | ALT554R |
| Specify LED CCT: | 3000K / 4000K / 6000K |
| Mounting Housing: | PVC Housing Included |
| Specify Finish/Colour: | Dark Grey / Custom |
| Input Voltage Option: | 100-240VAC / 24VDC |
| Dimmable Option: | Non-Dimmable / DALI / 1-10V |
All product details are subject to change without notice. Final specifications may vary.
