WDL200 EXTERIOR WALL LUMINAIRE – IP65

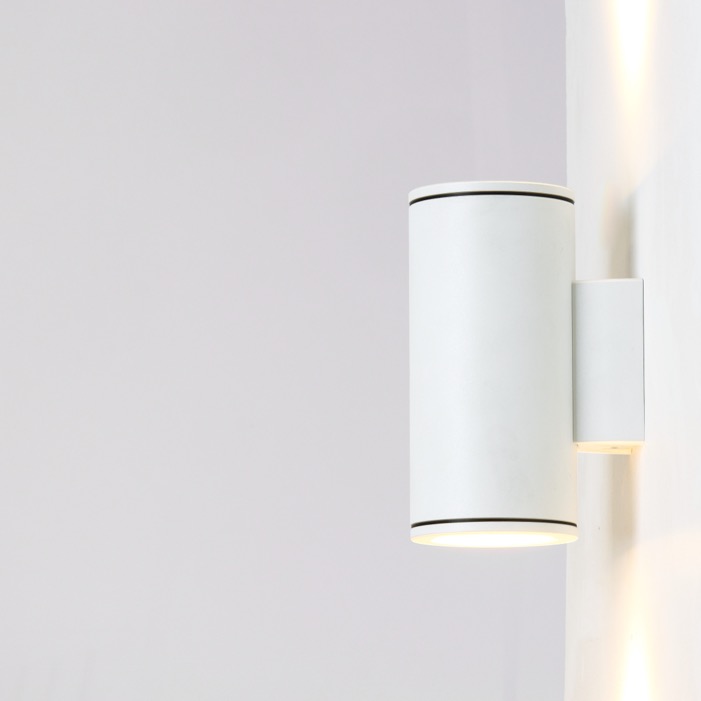

WDL200 is a high-performance commercial LED wall light designed for exterior applications. Featuring an up-and-down lighting design, it enhances building facades, columns, and architectural elements with a modern touch. Built for durability, it delivers efficient illumination while complementing contemporary exteriors. Ideal for commercial spaces seeking both functionality and aesthetic appeal.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 10W / 24W / 30W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | CREE CXA COB |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP65 |
| Profile Dimensions: | 96mm Dia x 200mm (Height) |
| Construction Material: | Aluminium with Glass Visor |
| Standard Colour/Finish: | Black / White / Silver / Custom |
| Recommended Ambient Temp: | -20°C – 45°C |
CONFIGURATION OPTIONS
- Also available in down only version by request (WDL224)
- Non-standard colours available by special request
- DALI dimmable configuration by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 105lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K |
| Colour Rendering (Ra): | >85Ra |
| Beam Angle/Viewing Angle: | 2 x 12˚ / 2 x 36˚ |
CONTROL OPTIONS
WDL200 can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | WDL200 |
| Specify LED Lamp Option: | 3000K / 4000K / 6000K |
| Optional Lens Beam Angle: | 2 x 12˚ / 2 x 36˚ |
| Specify Finish/Colour: | Black / White / Matt Silver / Custom |
| Input Voltage Option: | 100-240VAC |
| Specify Wattage: | 2x5W / 2x12W / 2x30W |
| Dimming Option: | Non Dimmable / Phase DImmable |
| Configuration: | Up & Down (Direct-Indirect) |
All product details are subject to change without notice. Final specifications may vary.
