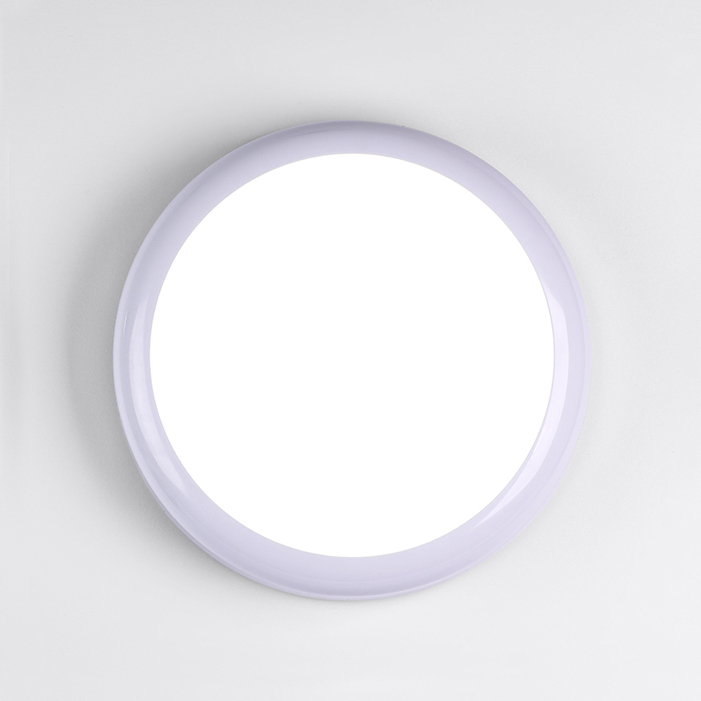

VNS320 Venus LED Bunker Luminaire
Industralight VNS320 is a versatile polycarbonate LED bunker luminaire designed for wall or ceiling installation. Built with a durable, powder-coated body and a robust polycarbonate visor, it offers multiple cover and CCT configurations, making it perfect for challenging commercial environments and outdoor applications. Ideal for demanding projects. Protected to IP66 with strong impact strength exceeding IK10. VNS320 range features user-selectable CCT and interchangeable cover rings.
Specifications
| Model: | VNS320 |
| Input Voltage: | 175-265VAC 50/60Hz |
| LED Driver Configuration: | Lifud Integral Constant Current |
| Max Power Consumption: | 20W |
| Construction Material: | Toughened Polycarbonate (IK10) |
| Overall Depth: | 93mm |
| LED Classification: | SMD2835 |
| Cover Options: | Plain Opal / Grille / Eyelid |
| Cover Finishes: | Black / White / Custom |
| Typical Light Source Efficacy: | 95lm/W |
| Recommended Ambient Temp: | -15°C~+55° |
| IK Impact Protection Rating: | IK10 |
| IP Protection Rating: | IP65 |
Photometric Information
- VNS320 CCT: 6500K CRI: >80
- VNS320 CCT: 4000K CRI: >80
- VNS320 CCT: 3000K CRI: >80
Detailed photometric report and IES files available by request
Typical Applications
VNS320 is a versatile LED bunker luminaire, ideal for commercial projects, common areas, and public spaces. Designed for wall and ceiling lighting, it’s perfect for security lighting in courtyards, passageways, and airports. With options for emergency lighting, it’s well-suited for schools, warehouses, and education projects, offering reliable performance in demanding environments.
3D Modelling & Lighting Design
Industralight can provide detailed 3D modelling and lighting design services for your project, including wiring schematics and lighting control system design. Contact us for more information.
Control & Dimming Compatibility
LED dimming and control options include:
- VNS320 is available in optional dimmable configurations, including Phase Dim, DALI, 1-10V, DMX512 or wireless control.
- Optional sensors are available.
- AS2293 emergency battery backup by special request.
Please contact us for options.
Customisation Options
- Integral sensors option available by special request
- AS2293 Emergency Battery Backup by request DALI or 1-10V
- Dimmable option available by special request
> Custom options may be subject to minimum order quantities
Ordering Information
| VNS320WH | 320mm Bunker Luminaire Plain Opal WHITE |
| VNS320BK | 320mm Bunker Luminaire Plain Opal BLACK |
| VNS320WH-EYELID | Eyelid Cover WHITE |
| VNS320BK-EYELID | Eyelid Cover BLACK |
| VNS320WH-GRILLE | Grille Cover WHITE |
| VNS320BK-GRILLE | Grille Cover BLACK |
**2HR Emergency Lighting Version – Available By Special Request
All product specifications are subject to change without notice. Industralight accepts no liabilities as a result of errors, updates or omissions. Please re-confirm all product details prior to ordering.
