VHT Velocity LED high bay luminaire
VHT High bay is a high-performance modular LED high bay luminaire engineered for demanding industrial and commercial lighting applications. Designed for efficiency and reliability, it delivers high lumen output with excellent uniformity for warehouses, factories, workshops, and logistics facilities. Featuring multiple power, optic, and mounting configurations, it enables tailored lighting layouts to suit project requirements. Built with robust construction and advanced thermal management, the VHT ensures long service life and consistent performance, making it a dependable solution for large-scale LED high bay lighting installations.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 60W / 100W / 150W / 240W / 300W |
| LED Driver Classification: | Integrated Heatsink LED Driver |
| Light Source Classification: | High Efficacy 2835 SMD LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating | IK10 |
| IP Protection Rating: | IP66 |
| Profile Dimensions: | Refer to Dimension Drawings |
| Construction Material: | Heavy-duty aluminium housing |
| Standard Colour/Finish: | Corrosion-Resistant Black Powder Coated |
| Recommend ambient temp: | -20˚C – 55˚C |
CONFIGURATION OPTIONS
● Built-in daylight sensor available by special request
● 1-10V Dimmable version available by special request
● DALI-2 version by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | Up to 210lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 60˚ / 90˚ / 120˚ |
CONTROL OPTIONS
VHT high bays can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, and analogue dimming.

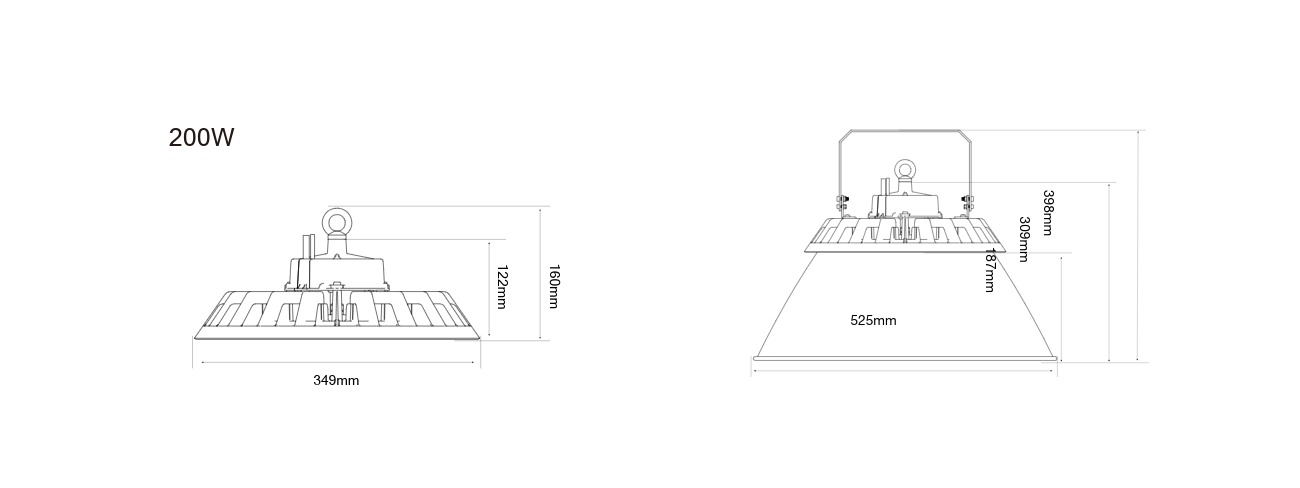

DIMENSION DRAWINGS
COMPLIANCE & CERTIFICATION
● IESNA 2002
● AS/NZS60598, LM79, LM80, SAA
● Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model: | VHT SERIES (BLACK / WHITE / CUSTOM) |
| Specify LED CCT: | 3000K / 4000K / 5000K / 6500K |
| Specify Beam Angle: | 60˚ / 90˚ / 120˚ |
| Specify Wattage: | 60W / 100W / 120W / 150W / 240W / 300W |
| Bracket Option: | J-Hook (U Bracket Available by request) |
| Control Option: | DALI / Non-Dimmable / Sensor |
All product details are subject to change without notice. Final specifications may vary.
