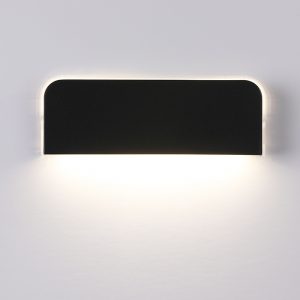

Industralight M740 Linear Wall Mounted LED Fixture

Industralight M740 is a high quality linear LED wall fixture suitable for commercial and residential spaces. The fitting is available in a wide range of configurations and finishes. Available with single or dual LED light source illumination options.

Electrical Parameters

Input Voltage220-240VAC
Max Power Consumption12W / 18W / 24W / 48W
Illumination ConfigurationDirect / Direct-Indirect
LED Driver ClassificationIntegral Constant Voltage
Light Source ClassificationSMD LED

Mechanical Specifications

Minimum IK RatingIK08
IP Protection RatingIP20
Profile Dimensions50x72mm
Nominal Length300mm / 600mm / 1200mm
Installation MethodWall Mounted
Construction MaterialExtruded Aluminium
Standard Colour/FinishWhite / Black / Silver
Recommended Operating Temp-15°C – 45°C

Configuration Options

  • Non standard colours available by special request
  • Custom sizes by special request
  • Integral DALI dimmable driver available by special request

Photometric Information

Typical Light Source Efficacy110lm/W
CCT Colour Temperatures2700K / 3000K / 4000K / 6500K
Colour Rendering Index [CRI]>90
Beam Angle / Viewing Angle2×120°

Detailed photometric report and IES files available by request

Lighting Design & Simulations

Industralight can provide independent LUX calculations and 3D lighting simulations for your project incorporating this product. Please contact our office for more information on design services.

Warranty Information

Industralight fixtures are manufactured to a high quality standard using finest quality LED components and materials. This product is covered by a full product replacement warranty.

Please see our warranty policy for full details.

Series Model NumberM740
Specify Colour Temp2700K / 3000K / 4000K / 6500K
Specify Fixture Length300mm / 600mm / 1200mm
Specify ConfigurationDirect / Direct-Indirect
Colour/FinishBlack / White / Silver
Dimmable OptionNon-Dim / DALI Dimmable / RF Control
