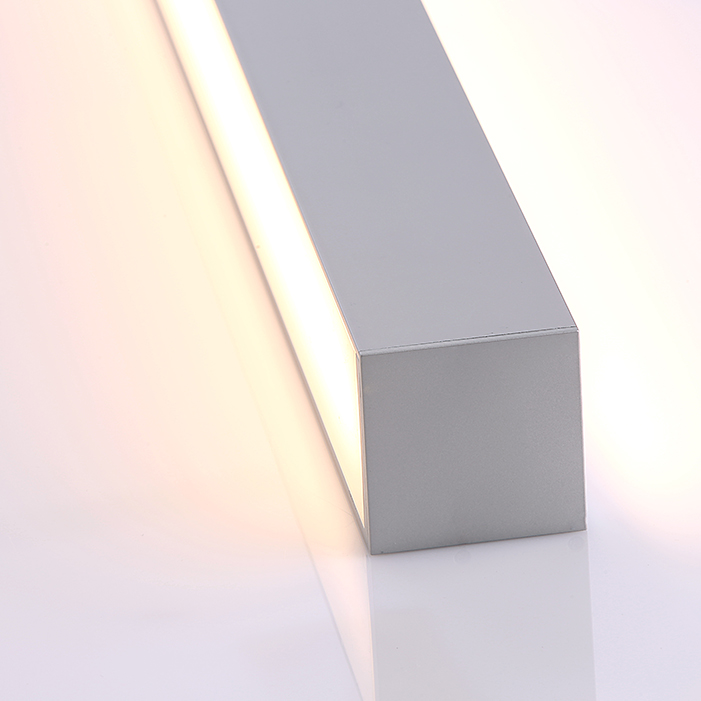

LUS505 CONTINUOUS LINEAR LED LUMINAIRE
LUS505 is a sleek, 50x50mm linear LED luminaire designed to enhance modern commercial interiors with precision and style. Featuring integrated LED lighting controls and accessible, serviceable components, it ensures seamless installation and maintenance. Crafted by Industralight, a leader in linear LED innovation, the LUS505 offers versatile dimming and customization options, exemplifying a sophisticated approach to adaptable and forward-thinking lighting design.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 18-48W per mtr |
| LED Driver Classification: | Integral Constant Voltage |
| Light Source Classification: | Osram Duris® E2835 |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK08 / IK10 |
| IP Protection Rating: | IP20 / IP65 |
| Profile Dimensions: | 50x50MM |
| Construction Material: | Extruded Aluminium |
| Standard Colour/Finish: | Black / White / Custom |
| Recommended Ambient Temp: | -15˚C – 45˚C |
CONFIGURATION OPTIONS
- Optional toughened polycarbonate diffuser IK10
- Profile colour can be refinished by special request
- DALI dimmable LED driver available by request
- CCT Tunable LED with DT8 DALI Control by Special Request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 110-120lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 6000K |
| Colour Rendering (Ra): | >80 / >90Ra |
| Beam Angle/Viewing Angle: | 110˚ |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Various dimming and control options are available. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming. RGBW or CCT TUnable is optional by special request.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | LUS505 |
| Specify Mounting: | Surface / Suspended / Other |
| Specify LED Wattage: | 18W – 48W |
| Input Voltage Option: | 100-240VAC / 24VDC |
| Dimming Option: | DALI / 1-10V / PWM / Non-Dim |
| Continuous Lengths: | Custom As Required |
All product details are subject to change without notice. Final specifications may vary.
