Industralight IL9624 Optoquad LED Floodlight

Industralight Optoquad is a high-quality LED floodlight projector suitable for indoor & outdoor illumination projects. The fitting has a compact design with efficient thermal heatsink design, making it suitable for all small to medium applications. Optoquad series features an integral LED driver built in meaning the product operates directly on mains voltages 100-240VAC. Available in single colour or RGB with DMX control.

Electrical Parameters

Input Voltage100-240VAC
Max Power Consumption16W
LED Driver ClassificationIntegral, Constant Current
Light Source ClassificationXR Power LED
LED Colour ConfigurationSingle Colour / RGB
RGB Control ProtocolDMX512

Mechanical Specifications

Minimum IK RatingIK09
IP Protection RatingIP65
Body Diameter155mm
Overall Height122mm
Construction MaterialPowdercoated Alloy
Standard FinishCorrosion Resistant
Recommended Operating Temp-10°C – 40°C

Configuration Options

  • RGB with DMX512 configuration available by request
  • Non-standard colours available by special request
  • Remote DALI dimmable LED driver available by request

Photometric Information

Typical Light Source Efficacy90lm/W
CCT Colour Temperatures3000K / 4000K / 6500K / RGB
Colour Rendering Index [CRI]>80
Beam Angle/Viewing Angle25° / 45°
RGB Control Range0-100% 256-bit

Detailed photometric report and IES files available by request

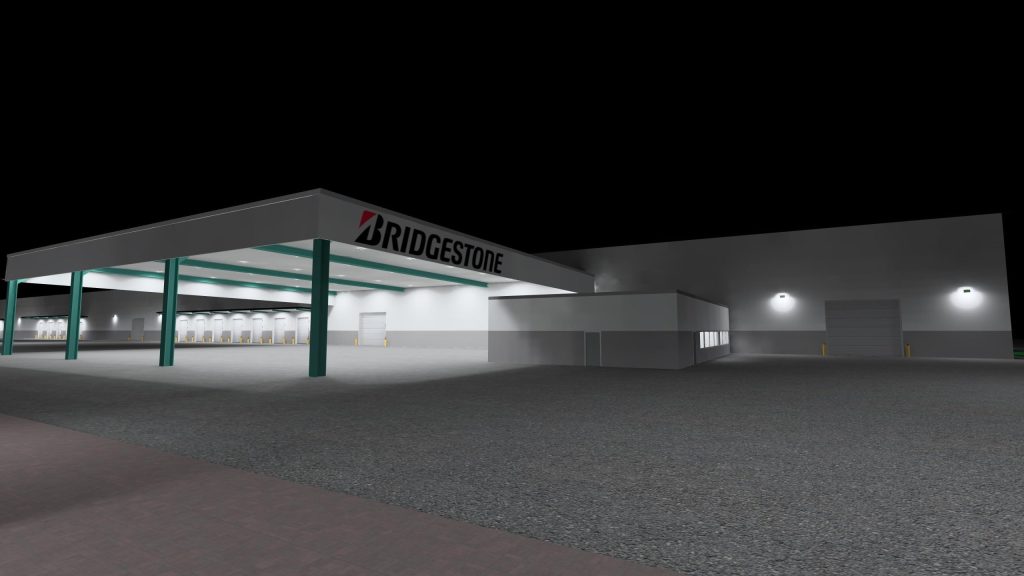

Lighting Design & Simulations

Industralight can provide independent LUX calculations and 3D lighting simulations for your project incorporating this product. Please contact our office for more information on design services.

Warranty Information

Industralight fixtures are manufactured to a high quality standard using finest quality LED components and materials. This product is covered by a full product replacement warranty.

Please see our warranty policy for full details.

Series Model NumberIL9624
Specify Colour Temp3000K / 4000K / 6500K
Optional RGB ConfigurationRGB / DMX512 / PWM Controller
Specify Beam Angle25° / 45°
Optional AccessoryGlare Hood / Garden Spike
Warranty InformationExtended Warranty Available
