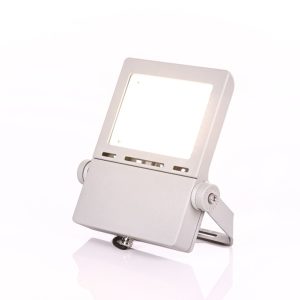

IL9623 OPTO-HVR LED Floodlight
Industralight Opto-HVR is a high-quality LED floodlight projector suitable for indoor & outdoor illumination projects. The fitting has a compact design with efficient thermal heatsink design, making it suitable for all small to medium applications. Opto-HVR series features an integral LED driver built in meaning the product operates directly on mains voltages 100-240VAC. Available in single colour or RGB with DMX control.
Electrical Parameters
| Input Voltage | 100-240VAC |
| Max Power Consumption | 18W |
| LED Driver Classification | Integral, Constant Current |
| Light Source Classification | XR Power LED |
| LED Colour Configuration | Single Colour / RGB |
| RGB Control Protocol | DMX512 |
Mechanical Specifications
| Minimum IK Rating | IK09 |
| IP Protection Rating | IP65 |
| Body Diameter | 185mm |
| Overall Height | 185mm |
| Construction Material | Powdercoated Alloy |
| Standard Finish | Corrosion Resistant |
| Recommended Operating Temp | -10°C – 40°C |
Configuration Options
- RGB with DMX512 configuration available by request
- Non-standard colours available by special request
- Remote DALI dimmable LED driver available by request
Photometric Information
| Typical Light Source Efficacy | 90lm/W |
| CCT Colour Temperatures | 3000K / 4000K / 6500K / RGB |
| Colour Rendering Index [CRI] | >80 |
| Beam Angle/Viewing Angle | 25° / 45° |
| RGB Control Range | 0-100% 256-bit |
Detailed photometric report and IES files available by request
