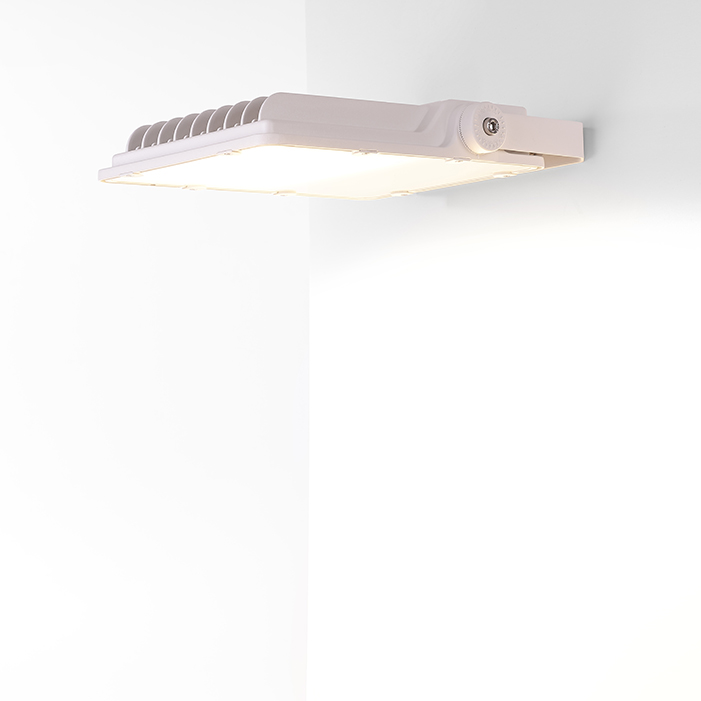

FL5(W) Dimmable LED wall-mounted area luminaire
FL5(W) Wall Mounted LED Floodlight is a new-generation, dimmable lighting solution featuring an integrated mains-voltage LED module. Designed for vertical surface installation, it delivers high lumen output with outstanding energy efficiency, providing powerful and uniform illumination for façades, building perimeters, and entry areas. Manufactured from durable, high-performance materials, the FL5 wall-mounted version is
ideal for industrial, commercial, and residential applications requiring reliable, long-lasting exterior lighting.
ELECTRICAL PARAMETERS
| Input Voltage: | 200-240VAC |
| Power Consumption: | 30W-400W (Refer to table) |
| LED Driver Classification: | Integral LED Driver |
| Light Source Classification: | Osram 3030T |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK09 |
| IP Protection Rating: | IP65 |
| Profile Dimensions: | Refer to table |
| Construction Material: | Aluminium |
| Standard Colour/Finish: | Corrosion resistant |
| Recommended Ambient Temp: | -30˚C – 45˚C |
TYPICAL DIMENSIONS (UNIT: MM)
CONFIGURATION OPTIONS
● Can be specified with a narrow or wide optic
● Power options up to 400W available by request
● Non-standard colours available by special request
● DALI version available by special request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 150lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 120˚ (other optic by request) |
CONTROL OPTIONS
The FL5 series is a unique phase dimmable LED floodlight compatible with most universal-style phase dimmers. Optional control protocols can be specified by request, including DALI, Casambi, Wireless, 1-10V, and analogue dimming. RGB and RGBW LED available by special request.
COMPLIANCE & CERTIFICATION
● IESNA2002
● AS/NZS60598, LM79, LM80
● Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model number: | FL5 |
| Specify LED CCT: | 3000K / 4000K / 5000K / 6500K |
| Specify wattage: | 30W-400W |
| Mounting accessory: | Adjustable bracket |
| Input Voltage Option: | 85-265VAC / 24VDC |
| Control Options: | Phase dimmable / DALI / Casambi |
All product details are subject to change without notice. Final specifications may vary.
