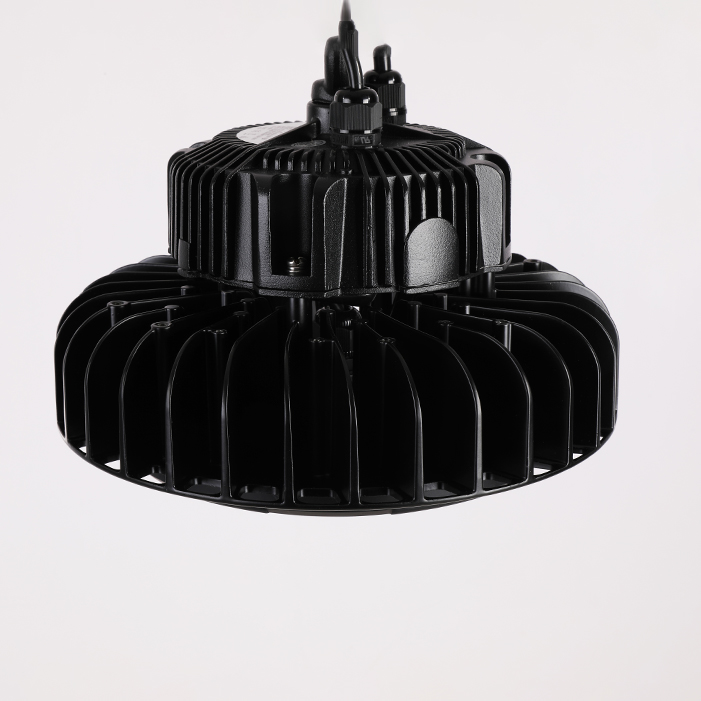

DHB7 LED HIGH BAY LUMINAIRE – SUSPENDED
DHB7 Series from Industralight, the leading Australian LED lighting manufacturer, provides a reliable high bay solution for new or retrofit commercial lighting projects. Compact, easy to install, and IP66-rated, it ensures robust performance in wet or demanding environments. Available in multiple sizes with optional dimming, it meets Australian lighting standards for dependable LED lighting applications and energy efficiency.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-277VAC |
| Power Consumption: | 80W / 100W / 120W / 150W |
| LED Driver Classification: | Integral Constant Current |
| Light Source Classification: | Philips Lumileds 3030 |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP66 |
| Nominal Body Dimensions: | 329mmx195mm |
| Construction Material: | Aluminium |
| Standard Colour/Finish: | Black Housing |
| Recommended Ambient Temp: | -20˚C – 55˚C |
CONFIGURATION OPTIONS
- PE daylight sensor available by request
- Wireless control synchronization by special request
- Non-dimmable version available by special request
- Additional reflector and refractor accessories available
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 150lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 60˚ / 90˚ / 120˚ |
CONTROL OPTIONS
Industralight LED high bays can be configured according to specific project requirements. Control options can be added by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming. Optional automation sensor.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | DHB7 |
| Specify LED CCT: | 2700K / 3000K / 4000K / 6500K |
| Specify Beam Angle: | 60˚ / 90˚ / 120˚ |
| Specify Wattage: | 80W / 100W / 120W / 150W |
| Input Voltage Option: | 100-240VAC |
| Dimming Options: | 1-10V / DALI / Non-Dimmable |
All product details are subject to change without notice. Final specifications may vary.
