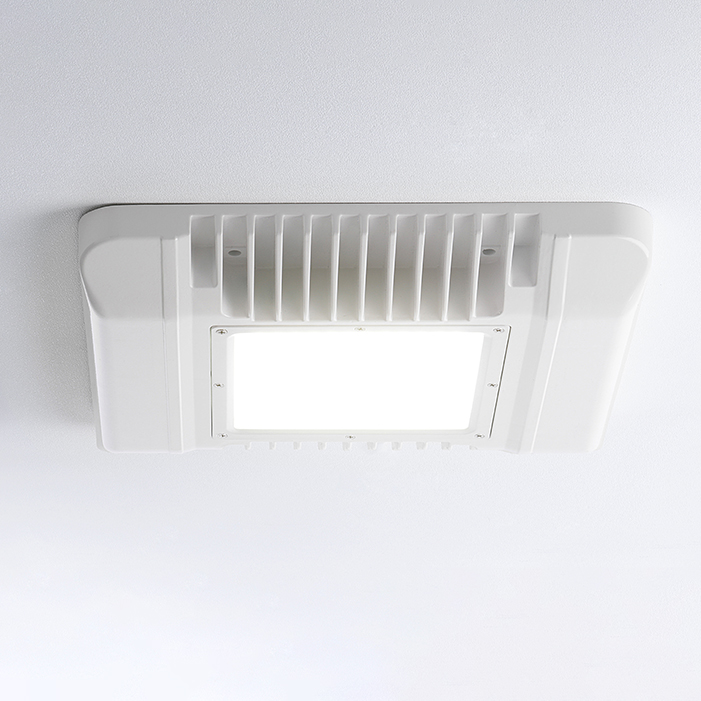

CP1100 RECESSED MOUNT LED CANOPY LUMINAIRE
CP1100 is a slimline, industrial-grade LED canopy luminaire ideal for general area lighting in commercial and industrial spaces. Designed with an architecturally styled, powder-coated steel body and durable polycarbonate lens, it features a powerful, efficient modular LED light source with an integrated LED driver. Multiple optical options are available for versatile lighting solutions.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-277VAC |
| Power Consumption: | 60W / 100W / 150W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | Philips Lumileds |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 380x380x70mm |
| Construction Material: | Aluminium Alloy with PC & Glass |
| Standard Colour/Finish: | Powdercoated / White |
| Net Weight: | 7.5KG |
| Recommended Ambient Temp: | -15˚C – 50˚C |
CONFIGURATION OPTIONS
- Recessed version also available
- Non standard colours available by special request
- DALI dimmable LED driver available by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 105lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 90˚ / 120˚ |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | CP1100 |
| Specify LED CCT: | 3000K / 4000K / 6500K |
| Specify Beam Angle: | 90˚ / 120˚ |
| Specify Wattage: | 80W / 100W / 150W / 200W |
| Input Voltage Option: | 100-277VAC |
| Control Options: | Non Dimmable / DALI / 1-10V / Sensor |
All product details are subject to change without notice. Final specifications may vary.
