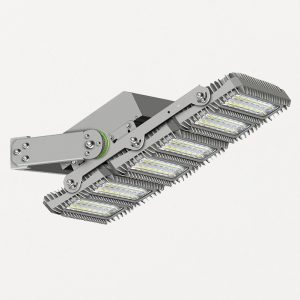

ATP423 ARIA TURBO FLOODLIGHT – PROJECTOR
ATP423 Aria Projector, designed by a leading LED lighting manufacturer, offers superior illumination and energy efficiency for outdoor and industrial settings. Its durable build ensures lasting performance, for extensive lighting needs. ATP423 ensures long-term reliability and exceptional weather resistance, a quality LED luminaire with RGBW options for expansive lighting projects
ELECTRICAL PARAMETERS
| Input Voltage: | 110-277VAC (50/60Hz) |
| Power Consumption: | 200W / 300W / 480W |
| LED Driver Classification: | Integral LED Driver |
| Light Source Classification: | High Powered LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK09 |
| IP Protection Rating: | IP65 |
| Profile Dimensions: | 423x285x443mm |
| Construction Material: | Aluminium |
| Standard Colour/Finish: | White / Black |
| Recommended Ambient Temp: | -20°C ~ 50°C |
CONFIGURATION OPTIONS
● Single Colour, RGBW orn CCT Tunable LED Version
● Built in DMX512 with RDM
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 110lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 6500K / RGBW |
| Colour Rendering (Ra): | >85Ra |
| Beam Angle/Viewing Angle: | 6° / 12° / 15° / 20° / 30° / 36° |
CONFIGURATION OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
● IESNA2002 / AS 60598.1.1
● LED: LM79, LM80
● Lifespan: Exceeds 50,000hrs @ L70
