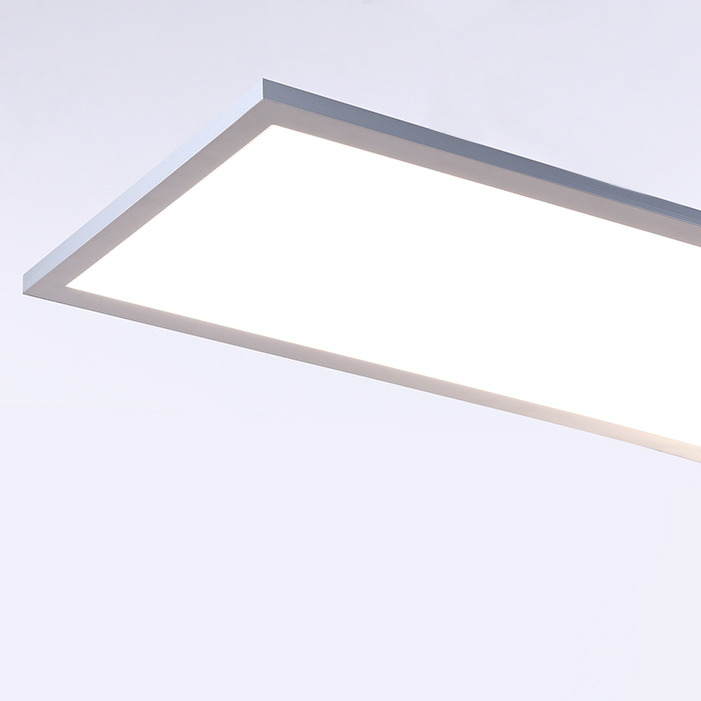

XTK Micro-prismatic recessed series LED panel
The XTK Series is a professional LED panel luminaire with a micro-prismatic diffuser designed for effective glare control in office and commercial spaces. The streamlined design incorporates integrated air-handling slots within the perimeter frame, supporting HVAC performance while maintaining a clean architectural finish. XTK IS engineered for T-Bar ceilings, delivering uniform light output, visual comfort, and dependable performance across professional applications.
ELECTRICAL PARAMETERS
| Input Voltage: | 220-240VAC |
| Power Consumption: | 20W / 32W / 50W |
| LED Driver Classification: | Constant Current |
| Light Source Classification: | Micro SMD LED |
MECHANICAL SPECIFICATIONS
| IP Protection Rating: | IP44 |
| Nominal Dimensions: | 295x1195mm / 595x595mm |
| Panel Thickness: | 25mm |
| Construction Material: | Aluminium with Acrylic |
| Standard Colour/Finish: | White XTK Frame |
| Installation Method: | T-Bar Installation |
| Recommended Ambient Temp: | -15°C – 45°C |
SIZR CONFIGURATIONS
| PART NO | L | W | H |
| XTK3030 | 295 | 295 | 25 |
| XTK3060 | 295 | 595 | 25 |
| XTK6060 | 595 | 595 | 25 |
| XTK6262 | 620 | 620 | 25 |
| XTK30120 | 295 | 1195 | 25 |
| XTK60120 | 595 | 1195 | 25 |
Custom sizes and options available by special request.
CONFIGURATION OPTIONS
● Micro-prismatic diffuser by request
● DALI dimmable LED driver available by request
● Custom Sizes range from 295x295mm to 595x1195mm
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 135-140lm/W |
| Unified Glare rating (UGR): | <19UGR |
| Colour Rendering (Ra): | >90Ra |
| Beam Angle/Viewing Angle: | 120˚ |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, and analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA 2002
- AS/NZS60598, LM79, LM80, SAA
- Lifespan: Exceeds 50,000hrs @ L70
OPTIONAL ACCESSORIES
- Wire suspension kit
- Plaster/gyprock frame
- L-bracket kit (wall-mount)
- Rod support bracket
- LED Driver gear tray
- Seismic restraint wire
- Surface mount frame
- Spring clip bracket
ORDERING INFORMATION
| Model: | XTK Series |
| Specify LED CCT: | 3000K / 4000K / 5000K / 6500K |
| Specify Panel Size: | 595x595mm / 295x1195mm / 595x1195mm |
| Specify Wattage: | 20W-48W |
| Control Option: | Non-Dim / DALI / DSI / 1-10V / Casambi |
| Installation Type: | T-Bar |
All product details are subject to change without notice. Final specifications may vary.
