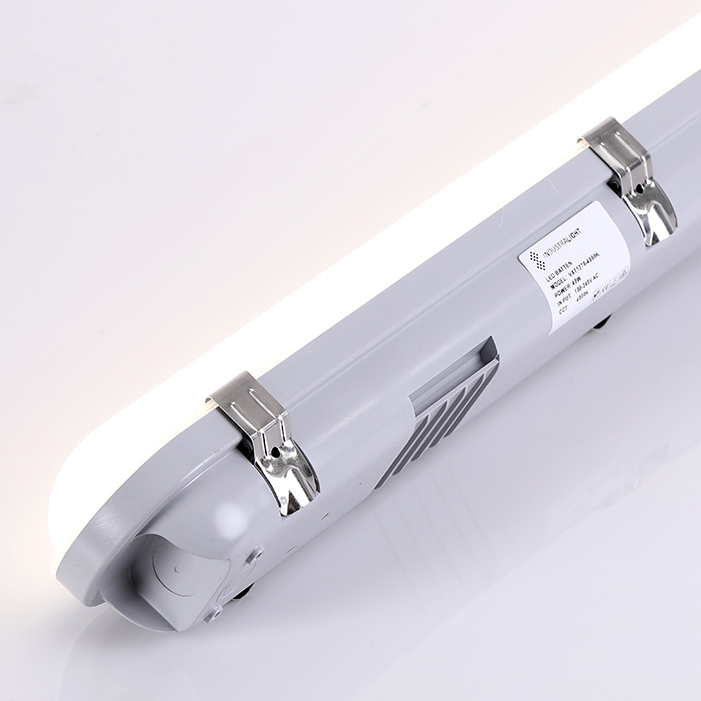

VXT POLYCARBONATE LED BATTEN LUMINAIRE
VXT LED Is a diffused integrated LED light luminaire suitable for general purpose lighting and utility lighting applications in commercial and industrial projects. The luminaires are constructed from toughened fire-resistant polycarbonate and they are ideal for installation in warehouses, factories, storerooms, underground tunnels, exterior locations etc.
ELECTRICAL PARAMETERS
| Input Voltage: | 220-240VAC |
| Rated Power: | 20W / 40W / 50W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | Industralight SMD2835 LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK09 |
| IP Protection Rating: | IP65 |
| Body Profile Dimensions: | 99x70mm |
| Construction Material: | Toughened Polycarbonate |
| Standard Colour/Finish: | White |
| Recommended Ambient Temp: | -15°C – 55°C |
CONFIGURATION OPTIONS
● Emergency lighting version available by request
● 24VDC version available by special request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 110lm/W |
| CCT Colour Temperature: | 3000K/4000K/6000K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 120˚ |
CONFIGURATION OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
● IESNA2002
● AS/NZS60598, LM79, LM80
● Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | VXT |
| Switchable CCT: | 3000K/4000K/6000K |
| Nominal Length: | 620mm / 1270mm / 1590mm |
| Specify Wattage: | 20W / 40W / 50W |
| Emergency Version: | Optional AS2293 2HR Emergency |
| Control Option: | Non-Dimmable / DALI / 1-10V |
All product details are subject to change without notice. Final specifications may vary.
