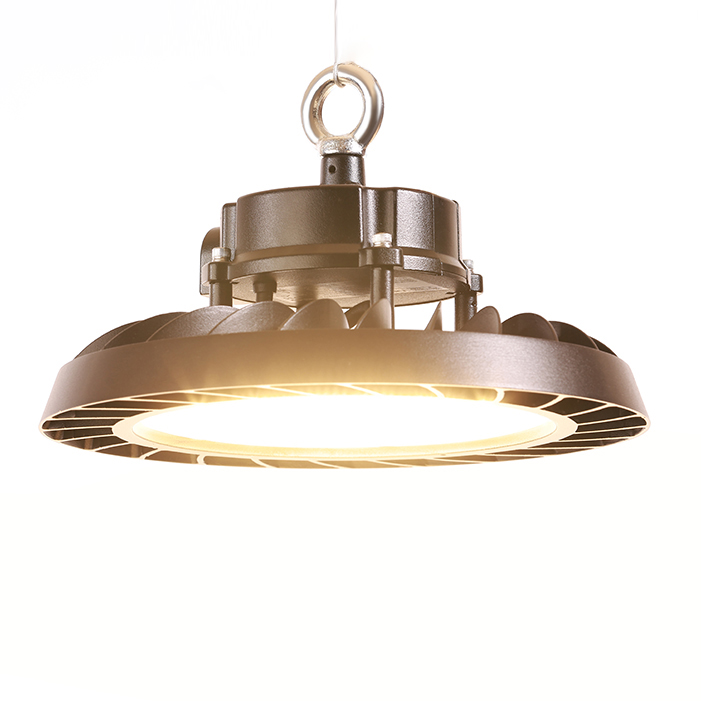

VHR Velocity LED highbay luminaire
VHR Highbay is a high-efficiency modular LED highbay luminaire engineered for demanding industrial and commercial lighting environments. Designed to deliver superior lumen output and energy efficiency, it is ideal for warehouses, factories, logistics centres, and large-scale facilities. Featuring a wide range of optic options, power configurations, and mounting accessories, the VHR enables flexible, project-specific lighting solutions. With robust construction and advanced thermal management, it ensures long-term reliability and consistent performance for professional LED highbay lighting installations.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Options: | 90W – 150W |
| LED Driver Classification: | Integrated Heatsink LED Driver |
| Light Source Classification: | High Efficacy 2835 SMD LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating | IK10 |
| IP Protection Rating: | IP66 |
| Profile Dimensions: | 270mm x 120mm |
| Construction Material: | Heavy-duty aluminium housing |
| Standard Colour/Finish: | Corrosion-Resistant Black Powder Coated |
| Recommend ambient temp: | -20˚C – 55˚C |
CONFIGURATION OPTIONS
● Built-in daylight sensor available by special request
● 1-10V Dimmable version available by special request
● DALI-2 version by request
● AS2293 Emergency Backup available by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | Up to 210lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 60˚ / 90˚ / 120˚ |
CONTROL OPTIONS
VHR highbays can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, and analogue dimming.
COMPLIANCE & CERTIFICATION
● IESNA 2002
● AS/NZS60598, LM79, LM80, SAA
● Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model: | VHR150R120 |
| Specify LED CCT: | 3000K / 4000K / 5000K SELECTABLE |
| Specify Beam Angle: | 120˚ |
| Specify Wattage: | 90W / 100W / 120W / 150W |

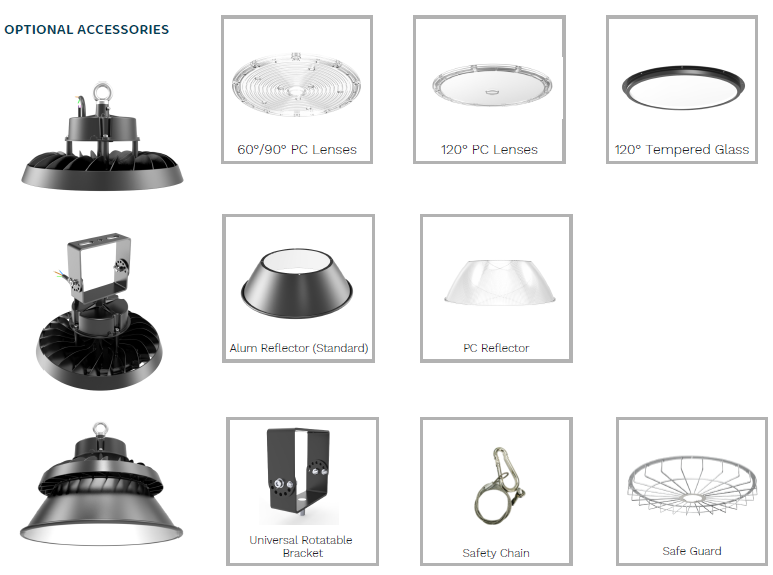

| Bracket Option: | EYEBOLT / TRUNNION U-BRACKET |
| Control Option: | PROGRAMMABLE SENSOR (OPTIONAL) |
All product details are subject to change without notice. Final specifications may vary.
