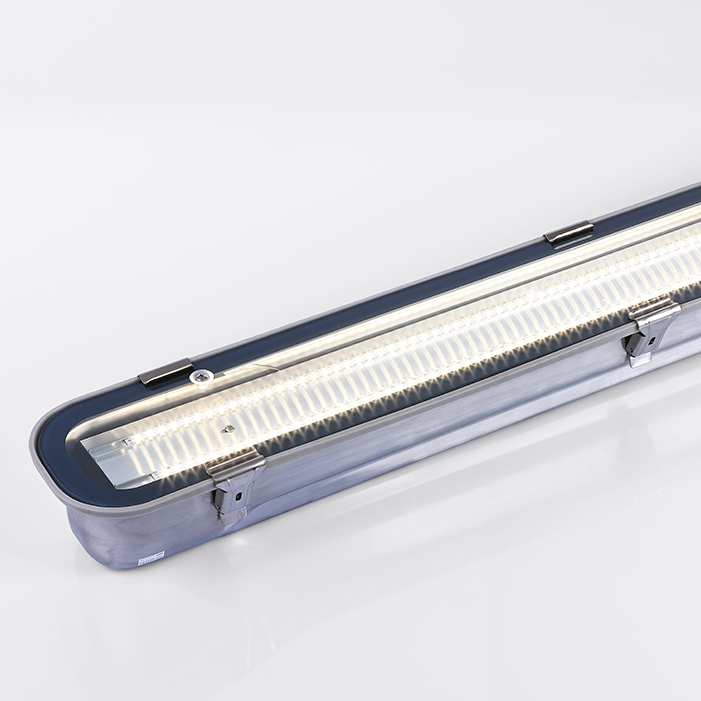

Industralight XVT Stainless Steel Linear Industrial LED Fixture

Industralight XVT is an industrial-grade linear LED light fixture constructed from stainless steel with toughened lens diffuser. The fixtures are ideal for installation into extreme environments including mining sites, chemical plants, warehouses, factories, underground tunnels, exterior locations etc.

Electrical Parameters

Input Voltage:100-240VAC
Power Consumption:20W / 40W / 48W
LED Driver Classification:Integral, Constant Current
Light Source Classification:Industralight SMD2835 LED


Mechanical Specifications

Minimum IK Rating:IK08
IP Protection Rating:IP65
Nominal Fixture Lengths:710mm/1310mm/1610mm
Construction Material:Stainless Steel


Configuration Options

  • Can be factory-fitted with microwave sensor switch or dimmer
  • 24VDC version available by special request


Photometric Information

Typical Lumen Efficacy:110lm/W
CCT Colour Temperatures:3000K/4000K/5000K/6500K
Colour Rendering Index (CRI):>90
Beam Angle/Viewing Angle:100°

Detailed photometric report and IES files available by request

Lighting Design & Simulations

Industralight can provide independent LUX calculations and 3D lighting simulations for your project incorporating this product. Please contact our office for more information on design services.

Warranty Information

Industralight fixtures are manufactured to a high quality standard using finest quality LED components and materials. This product is covered by a full product replacement warranty.  Please see our warranty policy for full details

Series Model Number:XVT Stainless Steel Series
Specify Wattage:20W / 40W / 48W
Specify Nominal Fixture Length:630mm / 1230mm / 1520mm
Specify Colour Temp:3000K/4000K/5000K/6500K
Optional Built In Sensor :Sensor Switch/Sensor Dimmer

All product specifications are subject to change without notice. Industralight assumes no responsibility of errors or omissions. Please confirm product details prior to ordering.
