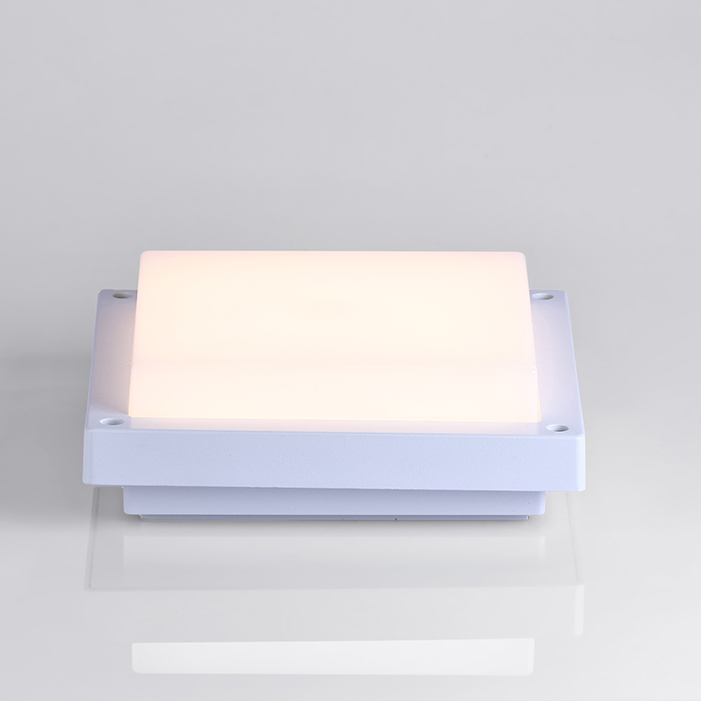

CP235 SURFACE MOUNT WALL OR CEILING LUMINAIRE
CP235 is a high-performance, toughened industrial-grade LED ceiling luminaire designed for efficient general area lighting. Its slimline design features a robust powder-coated steel body with a durable polycarbonate lens. Equipped with an integrated LED light source and driver, the CP235 is ideal for workspaces, cool rooms, canopy lighting, and various commercial and industrial applications.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-265VAC |
| Power Consumption: | 18W |
| LED Driver Classification: | Integral, Constant Current |
| Light Source Classification: | Epistar SMD LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 235x235x73mm |
| Construction Material: | Aluminium + Polycarbonate |
| Standard Colour/Finish: | Powdercoated |
| Recommended Ambient Temp: | -40˚C – 50˚C |
CONFIGURATION OPTIONS
- Non standard colours available by special request
- Integral microwave sensor by request
- DALI dimmable driver by special request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 110lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K / 5700K |
| Colour Rendering (Ra): | >85Ra |
| Beam Angle/Viewing Angle: | 120˚ |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | CP235 |
| Specify LED CCT: | 3000K / 4000K / 5000K / 5700K |
| Input Voltage: | 100-277VAC / 24VDC |
| Specify Finish/Colour: | Black / White |
| Specify Wattage: | 18W |
| Dimming Option: | Non Dim / DALI / 1-10V / Wireless |
All product details are subject to change without notice. Final specifications may vary.
