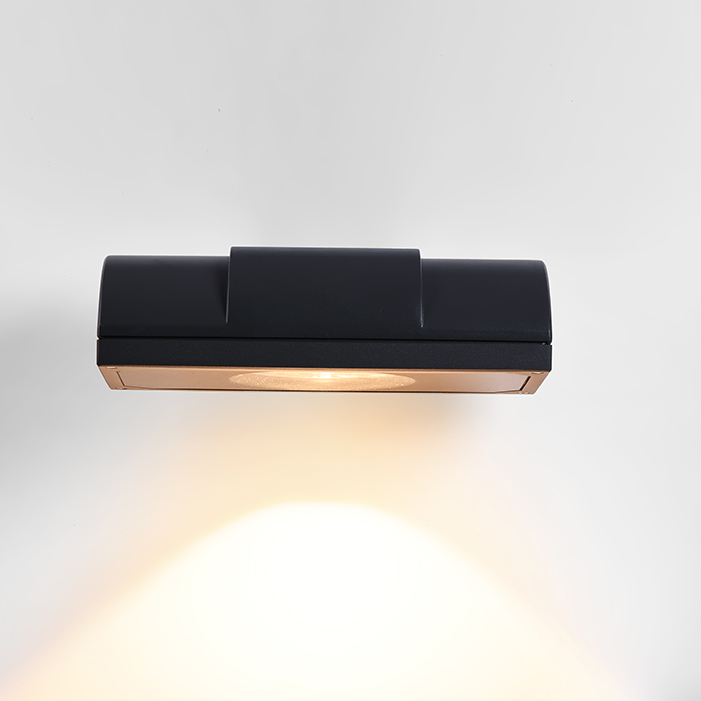

ALT7058 IP65 EXTERIOR WALL MOUNTED LUMINAIRE
ALT7058 is a commercial-grade wall luminaire featuring a unique adjustable swivel body. Built with high-quality components and a premium LED light source, the ALT7058 is ideal for a wide range of commercial applications, including government buildings, educational institutions, retail environments, hospitality spaces, and commercial landscaping projects.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 30W |
| LED Driver Classification: | Integral Meanwell LED Driver |
| Light Source Classification: | Citizen COB LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK09 |
| IP Protection Rating: | IP65 |
| Nominal Dimensions: | 330x230x97mm |
| Construction Material: | Tempered Glass |
| Standard Colour/Finish: | Dark Charcoal |
| Recommended Ambient Temp: | -10 ~ +55°C |
CONFIGURATION OPTIONS
- Optional anti-glare baffle louvre accessory by request
- Non standard fitting colours available by special request
- Integral DALI dimmable configuration avail by special request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 90lm/W |
| CCT Colour Temperature: | 3000K/4000K/6000K |
| Colour Rendering (Ra): | >85Ra |
| Beam Angle/Viewing Angle: | 15° / 50° |
CONTROL OPTIONS
This product can be customised or configured according to the needs of your project. Dimming and control options are available by special request,. Integrated Sensor options, Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | ALT7058 |
| Specify LED CCT: | 3000K / 4000K / 6000K |
| Specify Beam Angle: | 15° / 50° |
| Specify Finish/Colour: | Dark Charcoal, Powdercoated |
| Input Voltage Option: | 100-240VAC / 24VDC |
| Dimming Option: | Non Dimmable / DALI / 1-10V / Phase |
All product details are subject to change without notice. Final specifications may vary.
