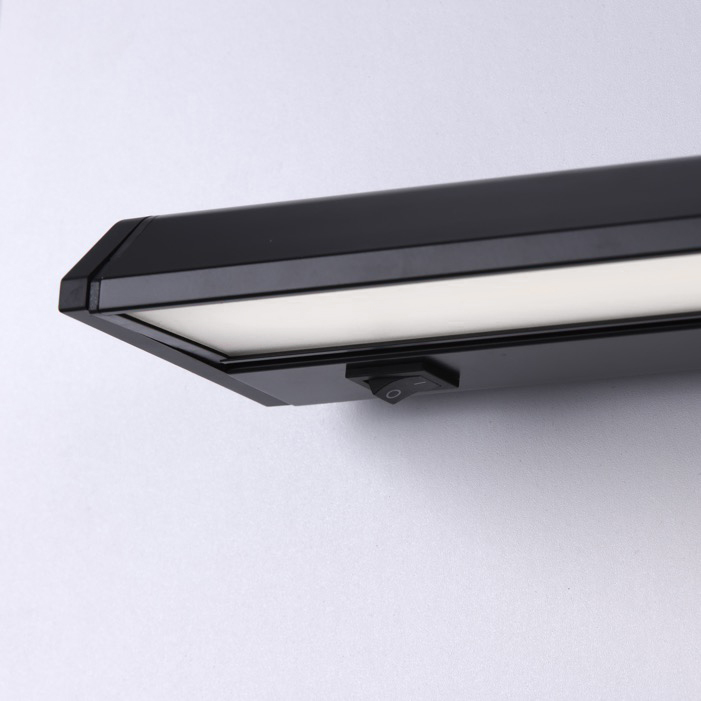

AER128 LINEAR WALL LUMINAIRE -DIRECT/INDIRECT
AER128 is a sleek, tilt-adjustable linear wall luminaire, ideal for above-bed lighting in retirement homes, hospitals, and clinical settings. Designed with both patient comfort and functionality in mind, it delivers optimal illumination while maintaining durability for a variety of wall lighting applications. Available in multiple modular lengths, the AER128 allows for customizable configurations.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-240VAC |
| Power Consumption: | 8W / 12W / 16W |
| LED Driver Classification: | Integral Constant Current |
| Light Source Classification: | SMD2835 |
| Construction Materials: | Aluminium and Copper |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK08 |
| IP Protection Rating: | IP40 |
| Profile Dimensions: | 102.5 x 28mm |
| Construction Material: | Die Cast Aluminum |
| Standard Colour/Finish: | Black / White / Matt SIlver |
| Recommended Ambient Temp: | -20˚C – 45˚C |
CONFIGURATION OPTIONS
- Three modular lengths available
- Non standard colours available by special request
- DALI dimmable LED driver available by request
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 90lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 5000K |
| Colour Rendering (Ra): | >85Ra |
| Illumination Configuration: | Direct-Indirect / Direct Only |
CONTROL OPTIONS
This product can be customised or configured according to the needs
of your project. Dimming and control options are available by special
request. Control protocols include DALI, Casambi, Wireless, 1-10V,
analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | AER128 |
| Specify LED CCT: | 3000K / 4000K / 5000K |
| Specify Length: | 632mm / 932mm / 1222mm |
| Specify Finish/Colour: | Black / White / Matt Silver / Custom |
| Specify Wattage: | 8W / 12W / 16W |
| Control Option: | Non Dim / DALI |
| Configuration: | Adjustable Tilt |
All product details are subject to change without notice. Final specifications may vary.
