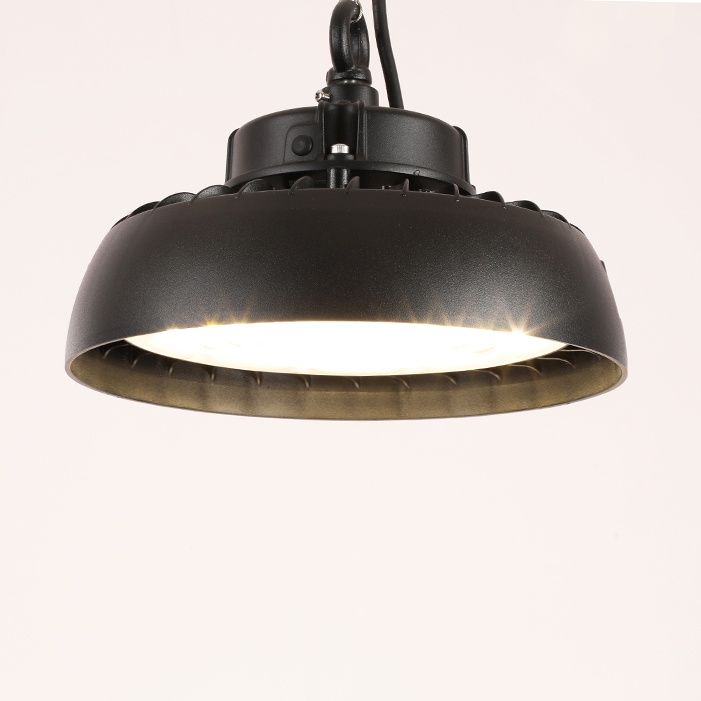

DHB5 INDUSTRIAL LED HIGHBAY LUMINAIRE
DHB5 LED Highbay is a highly efficient industrial lighting solution, engineered specifically for demanding applications. Designed with electrical contractors in mind, this LED Highbay offers superior performance, energy savings, and easy installation. Its robust construction and advanced optics ensure consistent, high-quality illumination for warehouses, factories, and large commercial spaces. The DHB5 LED Highbay reduces maintenance costs with long-lasting, reliable performance, making it the perfect choice for projects that require durability and efficiency. Choose the DHB5 LED Highbay for your next industrial installation and experience the difference in lighting quality and operational savings.
ELECTRICAL PARAMETERS
| Input Voltage: | 100-277VAC |
| Power Consumption: | 60W / 120W / 150W / 200W |
| LED Driver Classification: | Integral, Meanwell |
| Light Source Classification: | Nichia 256 LED |
MECHANICAL SPECIFICATIONS
| Minimum IK Rating: | IK10 |
| IP Protection Rating: | IP66 |
| Mounting Configuration: | Suspended (Eye Bolt Fixing) |
| Construction Material: | Aluminium |
| Standard Colour/Finish: | Black |
| Recommended Ambient Temp: | -20˚C – 50˚C |
PHOTOMETRIC INFORMATION
| Typical Lumen Efficacy: | 165lm/W |
| CCT Colour Temperature: | 3000K / 4000K / 6500K |
| Colour Rendering (Ra): | >80Ra |
| Beam Angle/Viewing Angle: | 90˚ / 120˚ |
CONTROL OPTIONS
Built-in microwave sensor is available by special request. DHB5 can be customised or configured according to the needs of your project. Dimming and control options are available by special request. Control protocols include DALI, Casambi, Wireless, 1-10V, analogue dimming.
COMPLIANCE & CERTIFICATION
- IESNA2002
- AS/NZS60598, LM79, LM80
- Lifespan: Exceeds 50,000hrs @ L70
ORDERING INFORMATION
| Model Number: | DHB5 SERIES |
| Specify LED CCT: | 3000K / 4000K / 6500K |
| Specify Beam Angle: | 90˚ / 120˚ |
| Specify Wattage: | 60W / 120W / 150W / 200W |
| Input Voltage Option: | 100-277VAC |
| Dimming Options: | 1-10V / DALI / Non-Dimmable |
All product details are subject to change without notice. Final specifications may vary.
